10Mpa Optical PC Dome End Cup Kit

$49.00

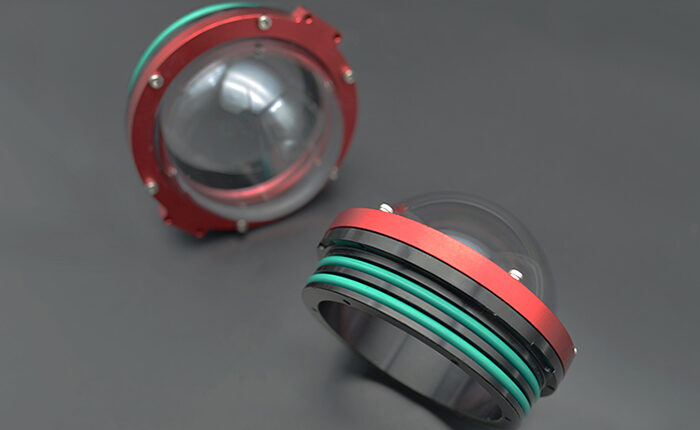

This clear optical PC dome lens is for use with an underwater camera and underwater robot.
The dome shape reduces drag on your vehicle and gives space for camera or camera pan-tilt. It has a wider field of view than that of a flat dome. This dome as been extensively pressure tested and is rated to 1000 meters(10 Mpa) water depth. This dome lens has some design reference with a retaining ring and providing a robust and simple seal and installation.

Clear
SKU: YS-Dome-002 Category:

Description

Product Description

Rovmaker 10Mpa Optical PC Dome End Cup of Underwater ROV Dome Lens



Specification



Optical Transmissivity Report



Explosion Proof  Test Report

5kg cylindrical heavy hammer with a diameter of 85mm and a height of 124mm was placed at an altitude of 1m above the top of the 3.5-inch riot ball cover to conduct the impact experiment of zero-initial velocity free-falling body movement;



Extrusion Test Report

No cracks after intense deformation(After radial compression of 50 percent).



Test Environment and Diagrams

Additional information

Model

with ear in-ring, without ear in-ring
