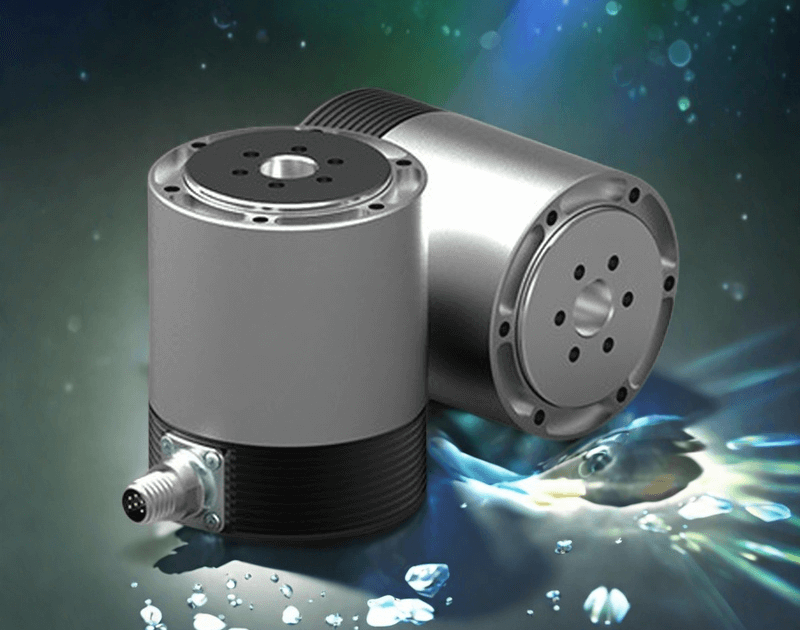

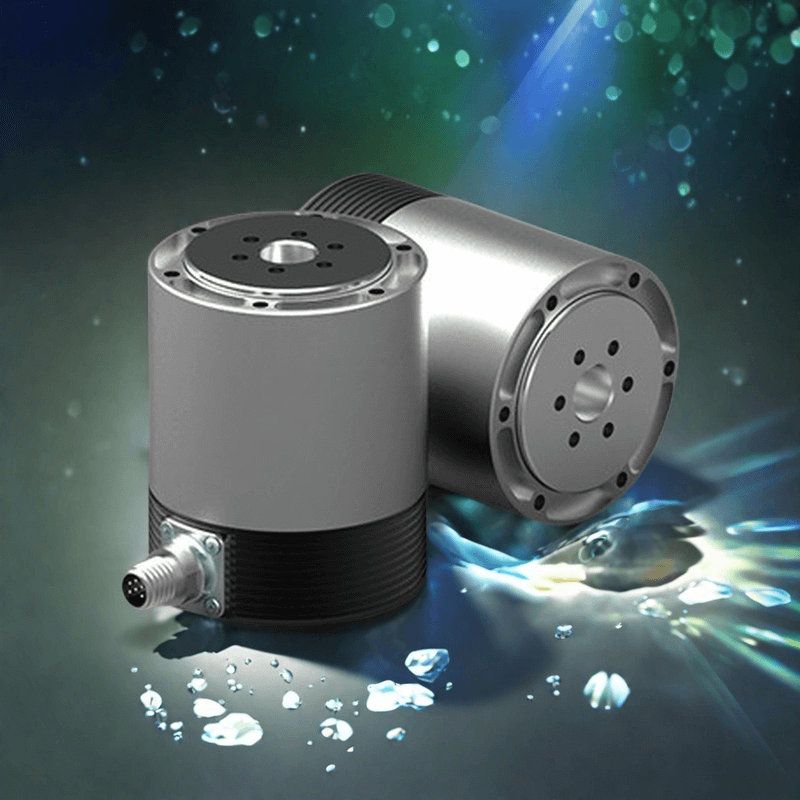

RV28 Submersible Servo Motor

$1,800.00

RV28 Submersible Servo Motor: High-Performance Deep-Water Solution

The RV28 is an integrated deep-water servo motor engineered with precision for demanding subaquatic environments. Featuring a compact integrated design, lightweight construction, and high-torque output, this motor delivers robust performance with exceptional waterproofing. Its built-in precision-engineered RV reducer enhances durability, shock resistance, and positioning accuracy, ensuring reliable operation in harsh conditions.

Optimized for industrial reliability, the RV28 excels in overload resistance and maintains stability across extreme deep-water applications. Ideal for marine exploration, underwater robotics, subsea pipeline operations, and critical deep-sea tasks, its streamlined design balances power with adaptability. Key attributes: High torque-to-weight ratio · Intelligent control · Long service life · Industry-leading waterproofing

(For certifications/waterproof ratings, refer to technical specifications or contact OEM.)

SKU: YS-ROV-001-1-2-1-1-1-1-1-1-1 Category: ROV Kit or Solutions Tag: ROV-SOLUTIONS

Description

Product Description

RV28 Submersible Servo Motor: High-Performance Deep-Water Solution

Core Advantages

1. Military-Grade Reliability

OEM supplier for leading subsea technology companies
10,000+ hours MTBF (Mean Time Between Failures)

2. Extended Service Life

Hardened trapezoidal lead screw
IP68-rated dual-sealing system

3. Plug-and-Play Integration

RS-485 communication protocol
Compatible with OpenROV, BlueROV, and mainstream robotic platforms

4. Compact Powerhouse

90- 150N clamping force (9-15kg @24VDC)
Space-saving design: Ø57×408mm (collapsed)

5. Modular Flexibility

Interchangeable end-effectors
Supports custom tooling integration

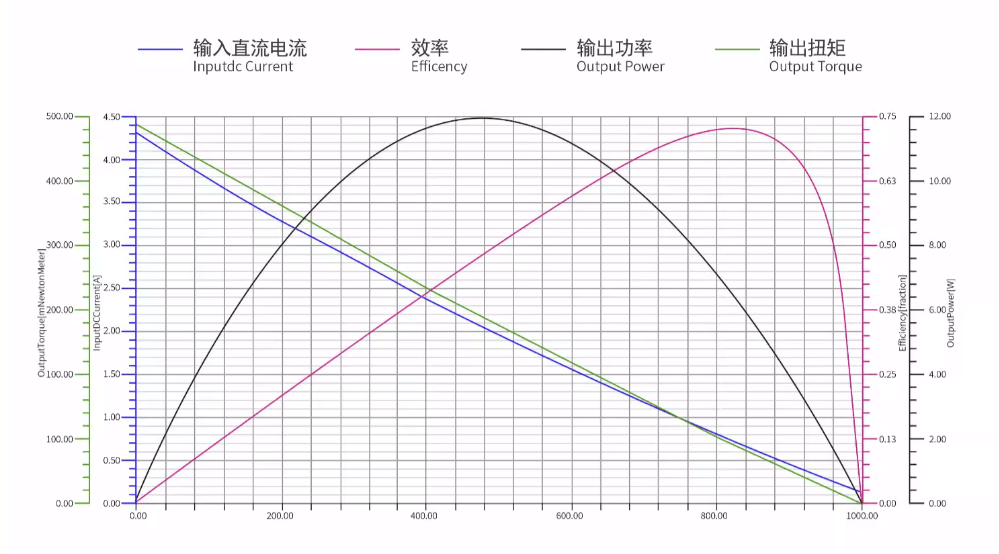

Technical Specifications

Parameter	Value/Description
Rated Current	2.2A
Rated Voltage	16V
Rated Torque	3.5Nm
Rated Speed	40rpm
No-load speed	70rpm
Torque constant	0.11N.m/A
Speed Constant	46.9rpm/V
Backlash	<3 arcmin
Peak power	22W
Peak torque	6.5Nm
Material quality	7075AL & SUS304
Motor weight	750g
Encoder resolution	18-bit Magnetic Encoder
Communication mode	CAN BUS/RS – 485
Turns	20
Reduction ratio	1:28

Seamless Integration Guide

1. Wiring Interface

- Red: 24V+
- Black: GND
- Yellow: RS-485 A
- Blue: RS-485 B

2. Control Logic

- 0x01 Command: Open claw (CCW rotation)
- 0x02 Command: Close claw (CW rotation)

Note: The full SDK and ROS driver package are available for download.

Dimension

Key safety features include

Adaptive torque-based auto-stop
Over-current/Over-voltage protection
Reverse polarity protection

Ideal for underwater exploration, scientific research, and robotics competitions.

Recommended Loading ROV

Our Customer

Packing & Shipping Style

Additional information

Product	EDGE P8 Kit, Ping Sonar, Dual-Lens Camera, Subsea Gripper, 2-DOF Gripper
